Uterus

Reproductive Systems

Coloring Image

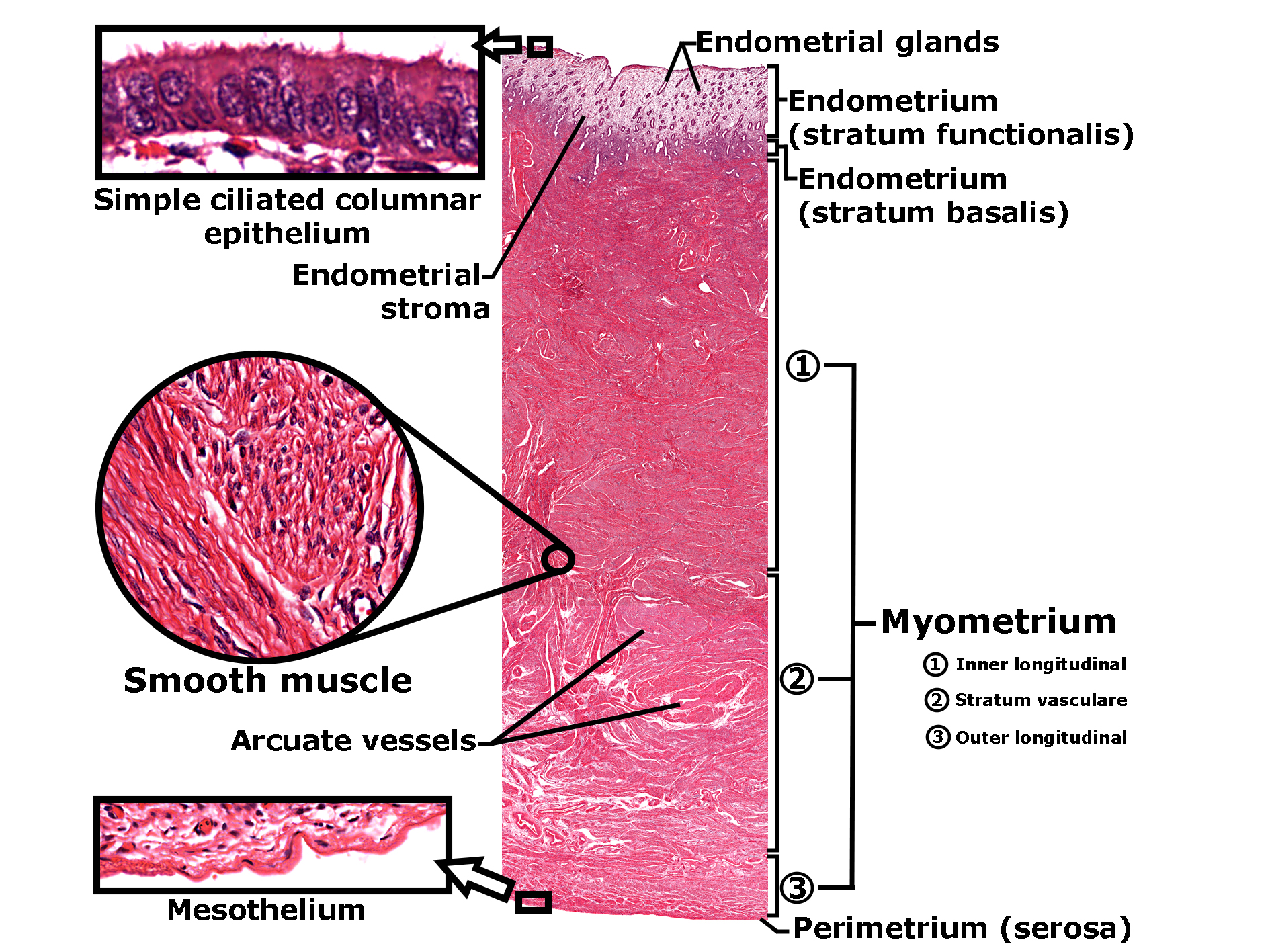

Histological section of the uterus stained with H&E, showing the endometrium and myometrium. The endometrium includes the stratum functionalis with endometrial glands and the stratum basalis supported by endometrial stroma. A magnified inset highlights simple ciliated columnar epithelium lining the uterine cavity. Below the endometrium, the myometrium consists of three layers of smooth muscle: inner longitudinal, stratum vasculare, and outer longitudinal, with arcuate vessels visible within the muscle bundles. The outermost layer is the perimetrium (serosa), lined by mesothelium, shown in a separate inset. The image illustrates the layered structure of the uterine wall and its epithelial and muscular components.

Histology Image

University of Tasmania, J. Chapman

Download Coloring Image

Download Histology image
