Schematic: Sinusoids & Bile Ducts

Digestive and Accessory Organs

Coloring Image

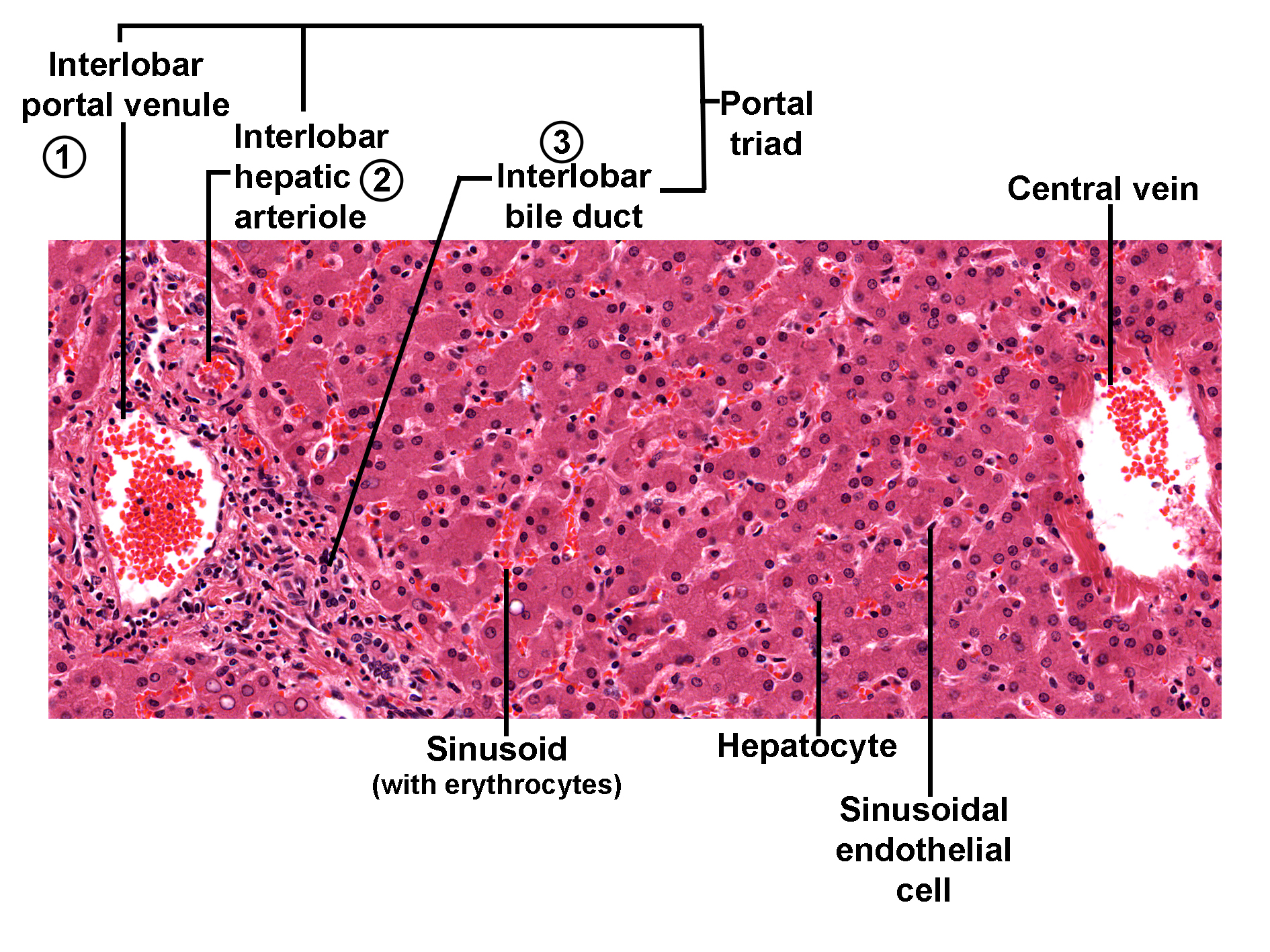

Histological section of the liver stained with H&E, showing a classic hepatic lobule. At the periphery, a portal triad is visible, consisting of an interlobar portal venule, interlobar hepatic arteriole, and interlobar bile duct. Sinusoids containing erythrocytes radiate toward the central vein, lined by sinusoidal endothelial cells. Hepatocytes form plates between sinusoids. The image illustrates the structural organization of the liver lobule and the relationship between portal triads, sinusoids, and central vein.

Histology Image

University of British Columbia, K. Pinder

Download Coloring Image

Download Histology image
